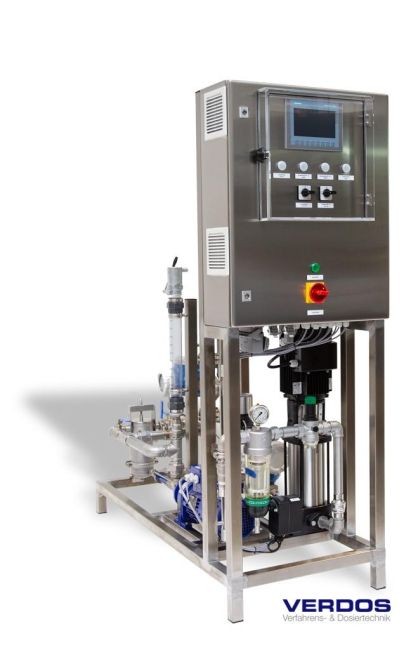

Fildomat PP

The Fildomat PP is a fully automatic system for the preparation of a highly effective polymer solution used in batch processing.

The polymer and water flow rates are PID controlled. This way, the user only has to specify the required polymer solution volumes on the touch panel or from an external device via 4-20mA signal or bus.

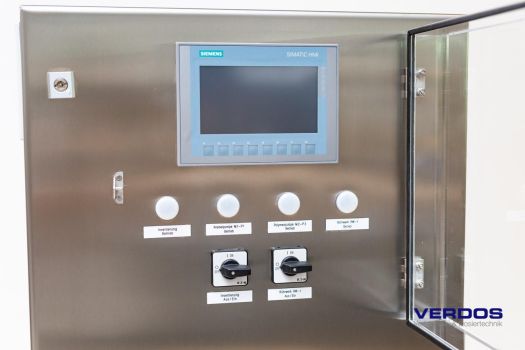

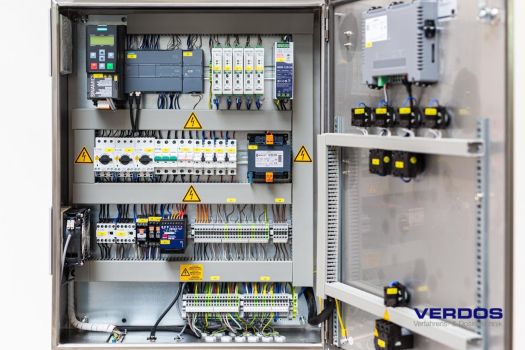

The system is controlled via a Siemens Simatic PLC. Via the touch panel, all parameters required for optimum operation can be entered and all process data can be monitored.

Data and facts:

Closed proprietary VERDOS inline mixing system.

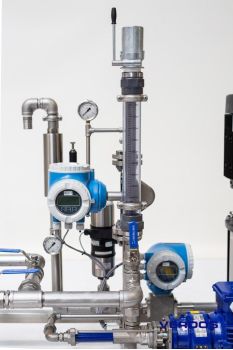

Inductive flow meter for the PID controlled water flow path
Coriolis or inductive flow meter for the PID controlled polymer supply

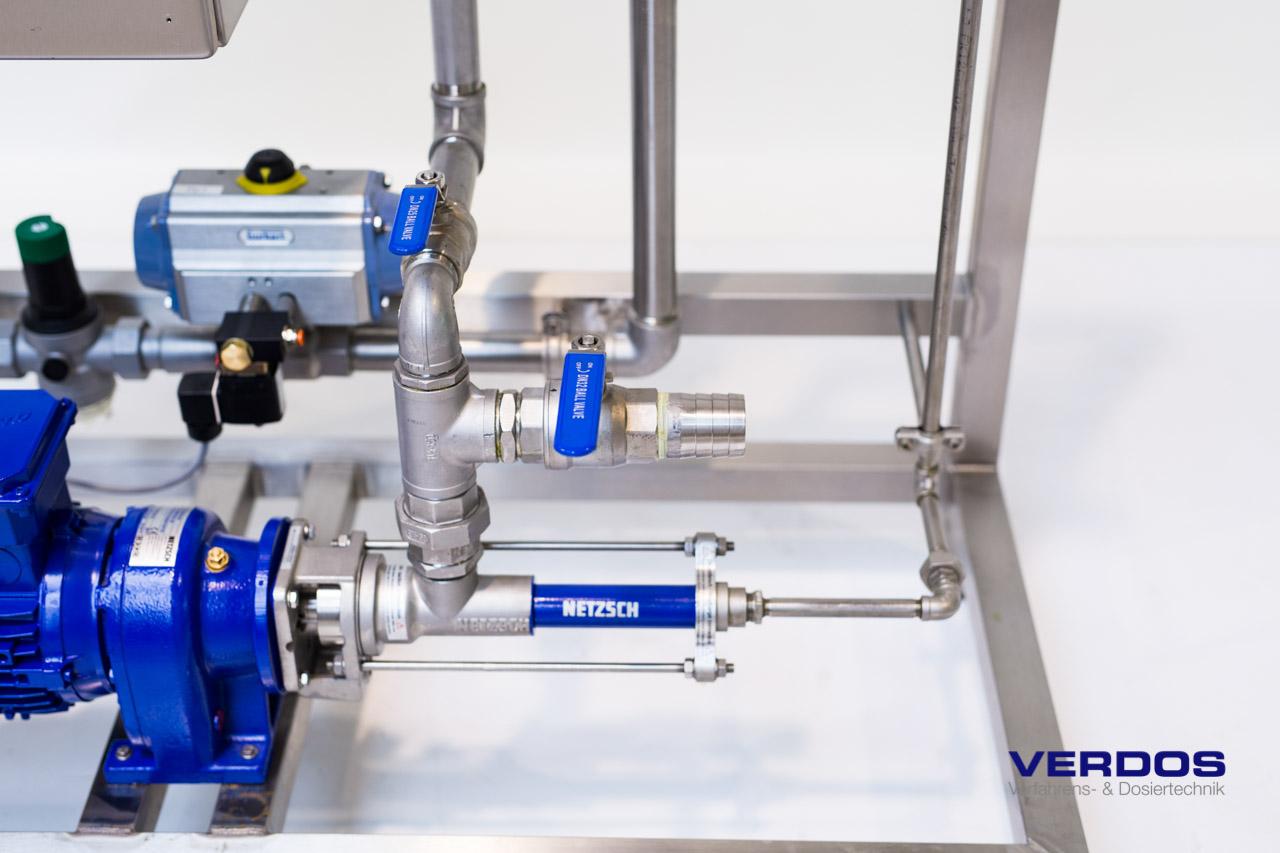

Suction aid for stock polymer
Stock polymer filter with bypass and replacement filter basket, 1200µm
Integrated agitator control unit for stock polymer
Chassis and piping made of high-quality stainless steel

Fildomat PP in standard design:

Type	Fildomat PP 2.5	Fildomat PP 6	Fildomat PP 10	Fildomat PP 15	Fildomat PP 20	Fildomat PP 30
Water flow rate l/h	2500	6000	10000	15000	20000	30000
Polymer capacity kg/h	25	60	100	150	200	300
Solution concentration	0,1 – 2%

Custom sizes available on request.

Fildomat MC

Mechanically controlled

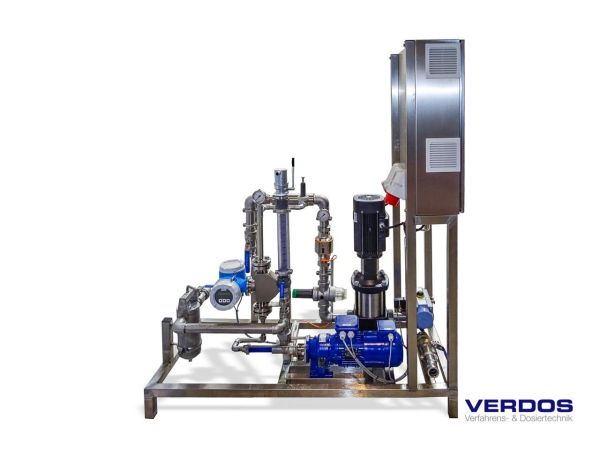

The Fildomat MC is a semi-automatic system for the preparation of a highly effective polymer solution used in batch processing.
The water and product volumes are entered manually.

The system is controlled via a Siemens Simatic PLC. Via the touch panel, all parameters required for optimum operation can be entered and all process data can be monitored.

Data and facts:

Closed, proprietary VERDOS inline mixing system.
Water flow path with flow rate indication and monitoring
Polymer line with flow switch

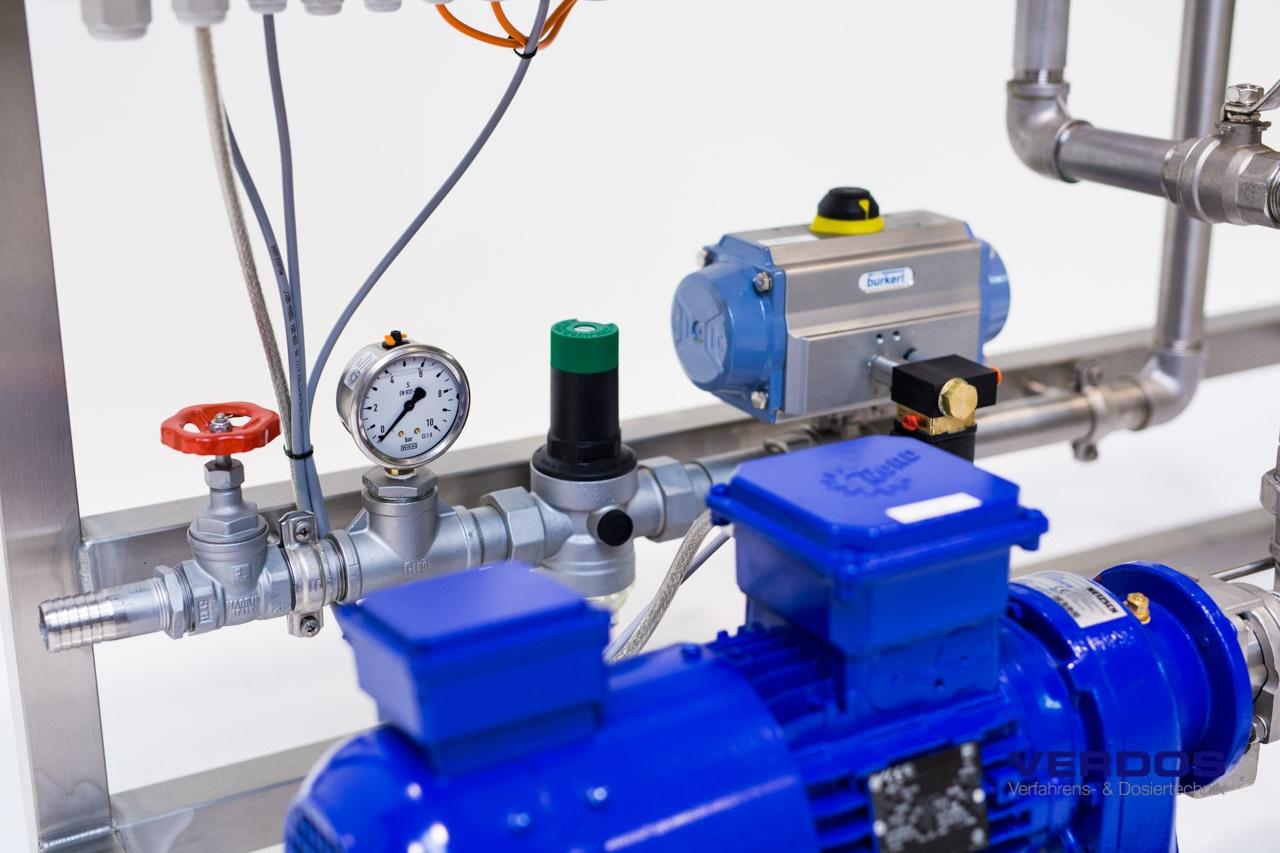

With booster pump

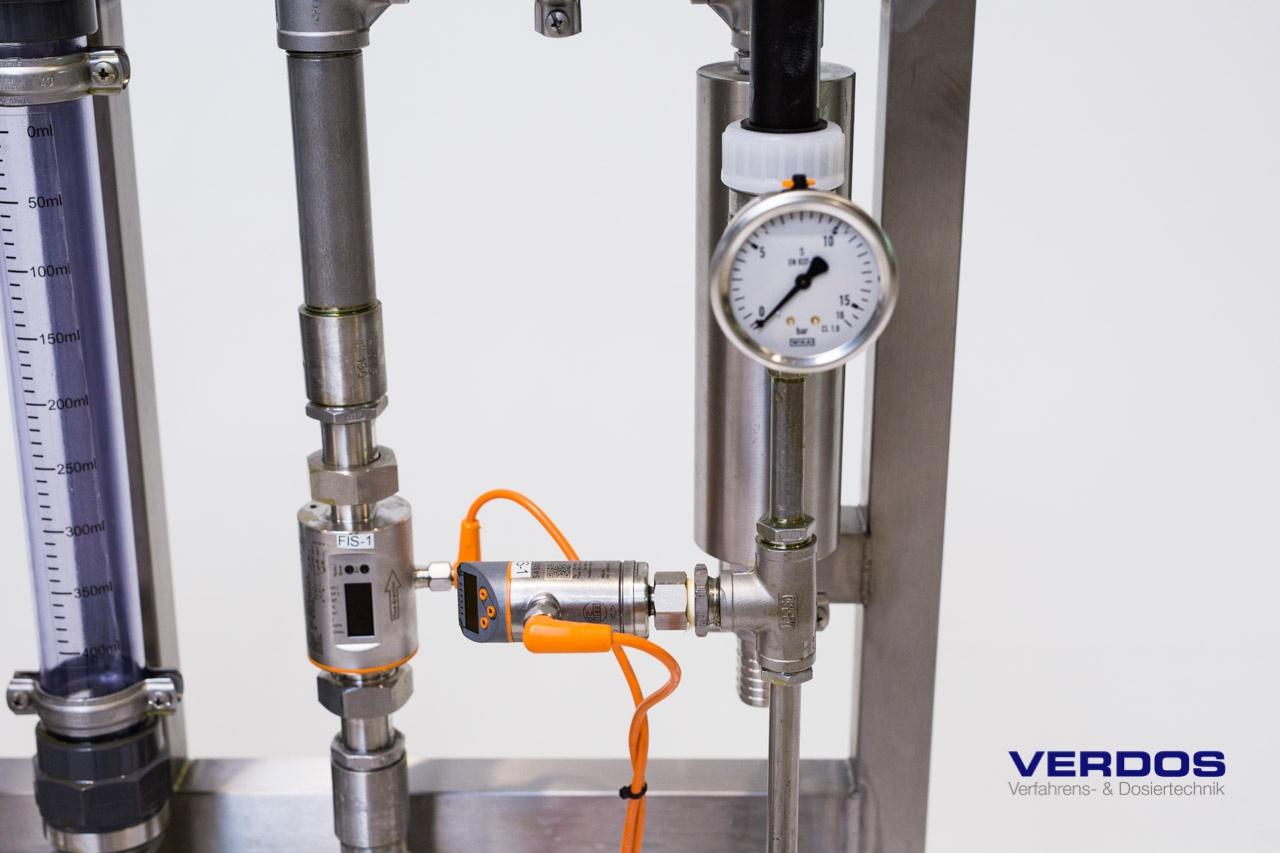

Suction aid with gauging unit for stock polymer
Integrated agitator control unit for stock polymer
Chassis and piping made of high-quality stainless steel

Fildomat MC in standard design:

Type	Fildomat MC 2.5	Fildomat MC 6	Fildomat MC 10	Fildomat MC 15	Fildomat MC 20	Fildomat MC 30
Water flow rate l/h	2500	6000	10000	15000	20000	30000
Polymer capacity kg/h	25	60	100	150	200	300
Solution concentration	0,1 – 2%

Custom sizes available on request.

Further options:

Product filter in double-filter design or with bypass
Fill level electrode, with 3 electrode rods, for a downstream dissolving tank
Pressure transmitter for a downstream dissolving tank
Inlet nozzle for a downstream dissolving tank for the introduction of a level electrode and a filling hose

Fildomat LC

Cost-efficient polymer batch station

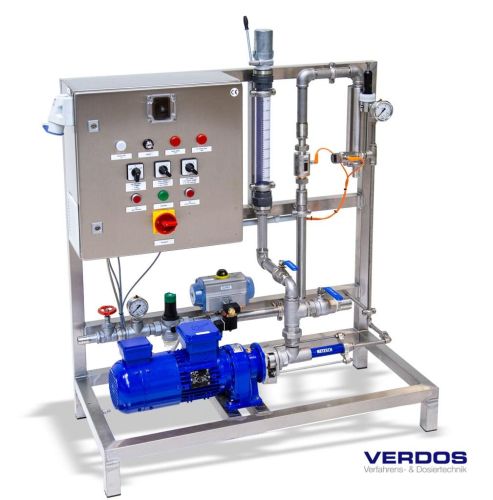

The Fildomat LC is a cost-efficient semi-automatic compact system for the preparation of a highly effective polymer solution used in batch processing.
The water and product volumes are entered manually.

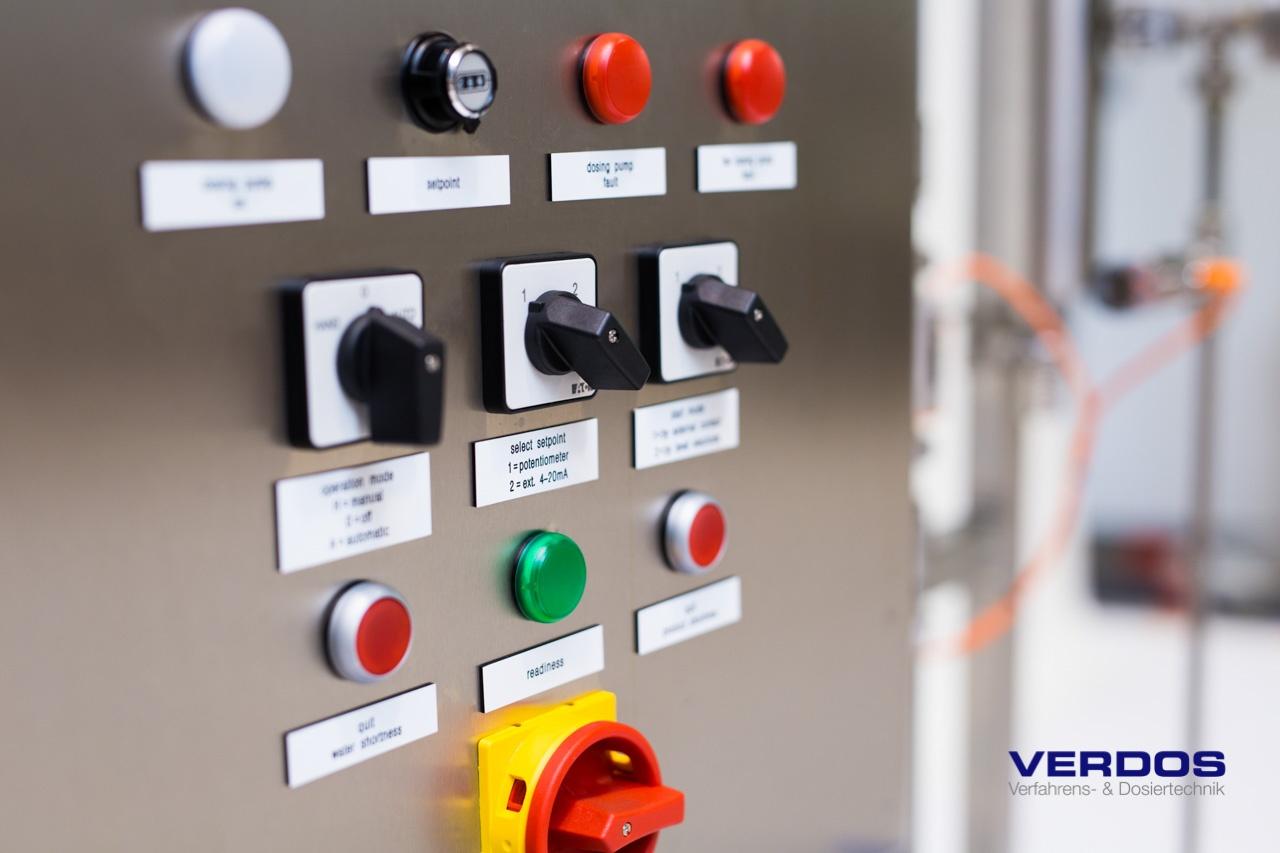

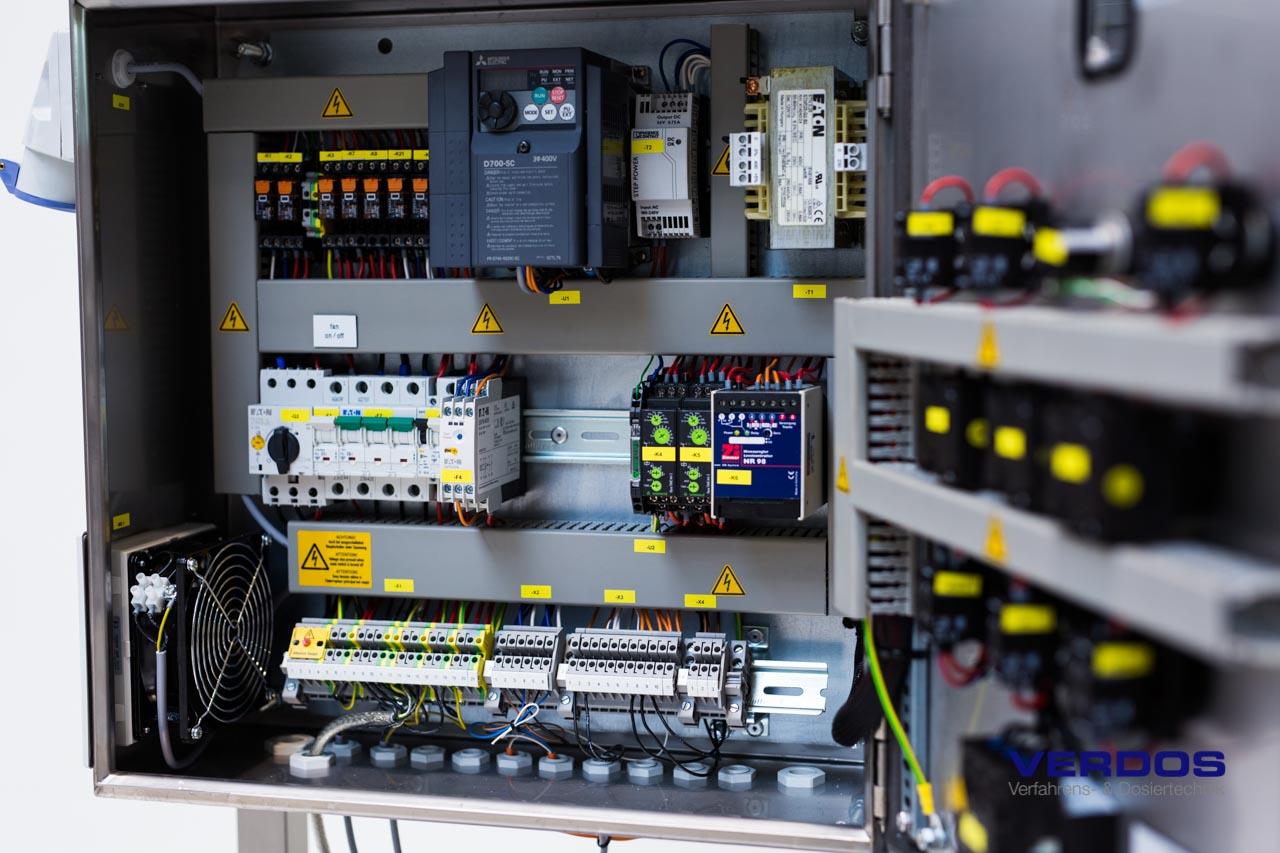

The system is controlled via conventional relays and contactors. All parameters required for optimum operation can be set via switches and potentiometers. Signal lamps serve to monitor fault signals.

Data and facts:

Closed proprietary VERDOS inline mixing system.
Water flow path with flow rate indication and monitoring
Suction aid with gauging unit for stock polymer
Chassis and piping made of high-quality stainless steel

Fildomat LC in standard design:

Type	Fildomat LC 1	Fildomat LC 2.5	Fildomat LC 6	Fildomat LC 10
Water flow rate l/h	1000	2500	6000	10000
Polymer capacity kg/h	10	25	60	100
Solution concentration	0,1 – 2%
Water inlet pressure	at least 3,5 bar

Custom sizes available on request.

Further options:

Product filter in single- or double-filter design or with bypass
Fill level electrode, with 3 electrode rods, for a downstream dissolving tank
Inlet nozzle for a downstream dissolving tank for the introduction of a level electrode and a filling hose
Polymer line with flow switch
Booster pump
