• Dosing systems

Polymer dosing systems

Our polymer dosing systems are the optimum solution for safe and reliable polymer solution dosing at any number of dosing points.

rear view
polymer dosing pump
Control panel
Steering
  • rear view
  • polymer dosing pump
  • Control panel
  • Steering
Read more...

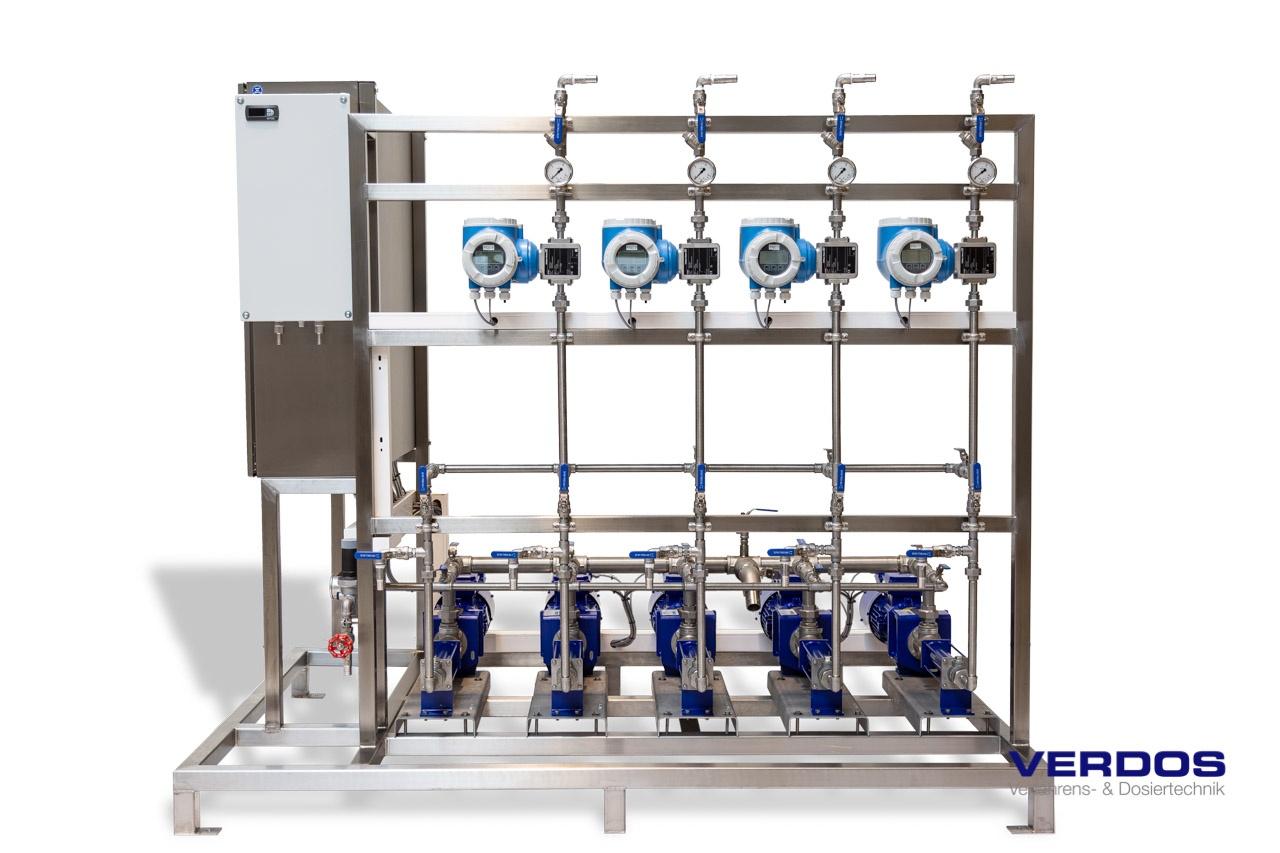

VERDOS polymer dosing systems carefully dose the polymer solution using frequency converter-controlled eccentric screw pumps. Inductive flow meters ensure consistent dosing precision.

With the components used, we manufacture reliable, durable and easy-to-operate polymer dosing systems in tried-and-tested Verdos quality.

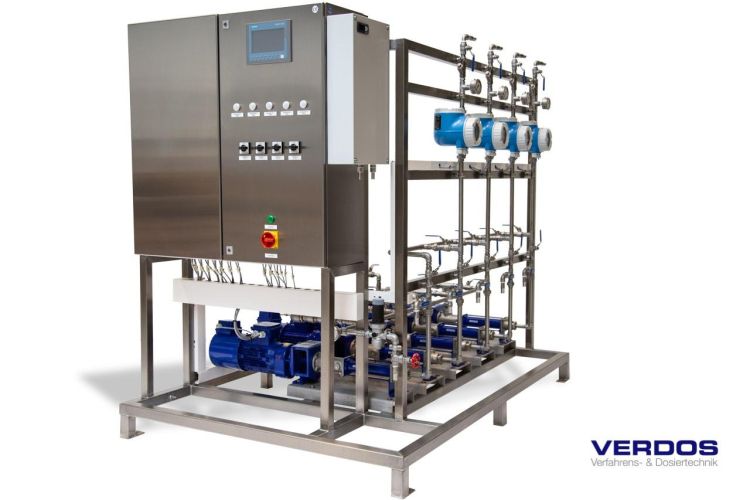

The system is controlled via a Siemens Simatic PLC. Via the touch panel, all parameters required for optimum operation can be entered and all process data can be monitored

Data and facts:

  • Compact system
  • Chassis and piping made of high-quality stainless steel

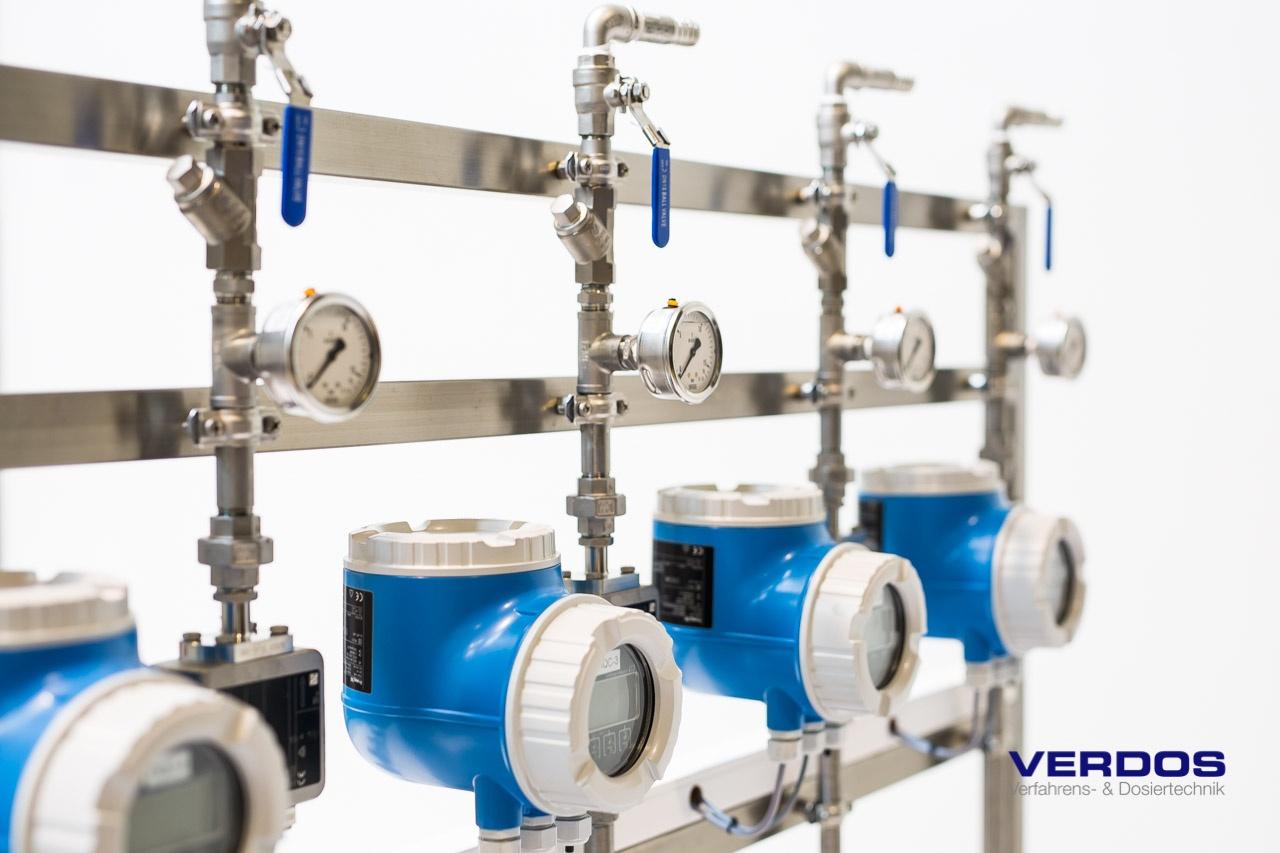

  • Inductive flow meter

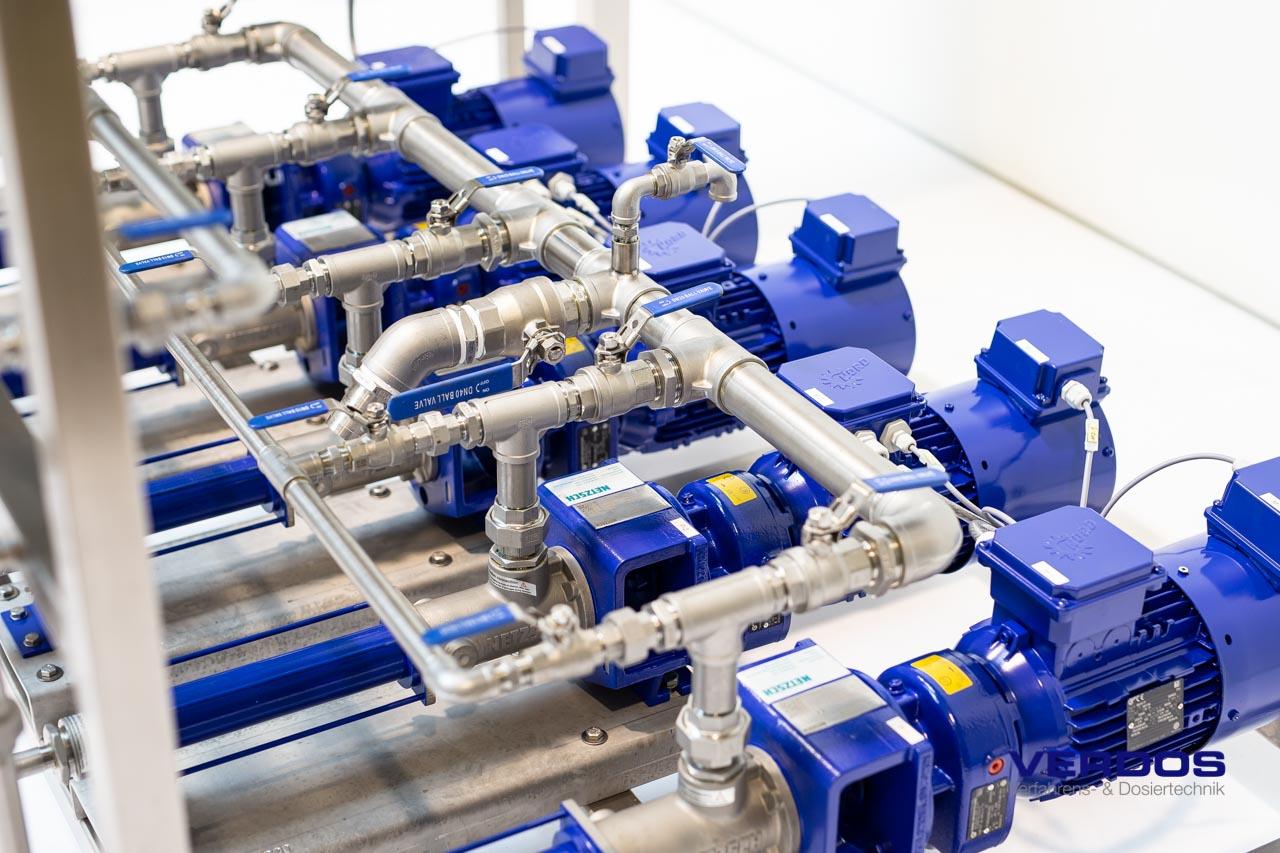

  • Frequency converter-controlled eccentric screw pumps with forced cooling fan
  • Switch and control cabinet
    • With Siemens Simatic PLC and touch panel, for full process flow control
    • Air-conditioned or heated

Further options:

  • Standby pump
    • With manual or automatic switching
  • Secondary dilution unit for optimum dilution of the polymer solution
  • Polymer double filter units ensure a technically clean polymer solution

Our polymer dosing systems are developed for continuous operation and stand out for their reliability, their long service life and ruggedness.

Gallery...
Dosieranlage für Polymere 1
Dosieranlage für Polymere 2
Dosieranlage für Polymere 3
Dosieranlage für Polymere 4
Dosieranlage für Polymere 5
Dosieranlage für Polymere 6
Dosieranlage für Polymere 7
Dosieranlage für Polymere 8
Dosieranlage für Polymere 9
Dosieranlage für Polymere 10
Dosieranlage für Polymere 11
