Filter systems

Our filter systems are used for a wide range of industrial applications and for the mechanical filtration of media of varying viscosities. Our filter basket inserts can be used with and without a filter bag. Depending on your requirements, Verdos filter systems are available in a single-filter design with and without bypass or in a double filter design.

Actuation types
Front view

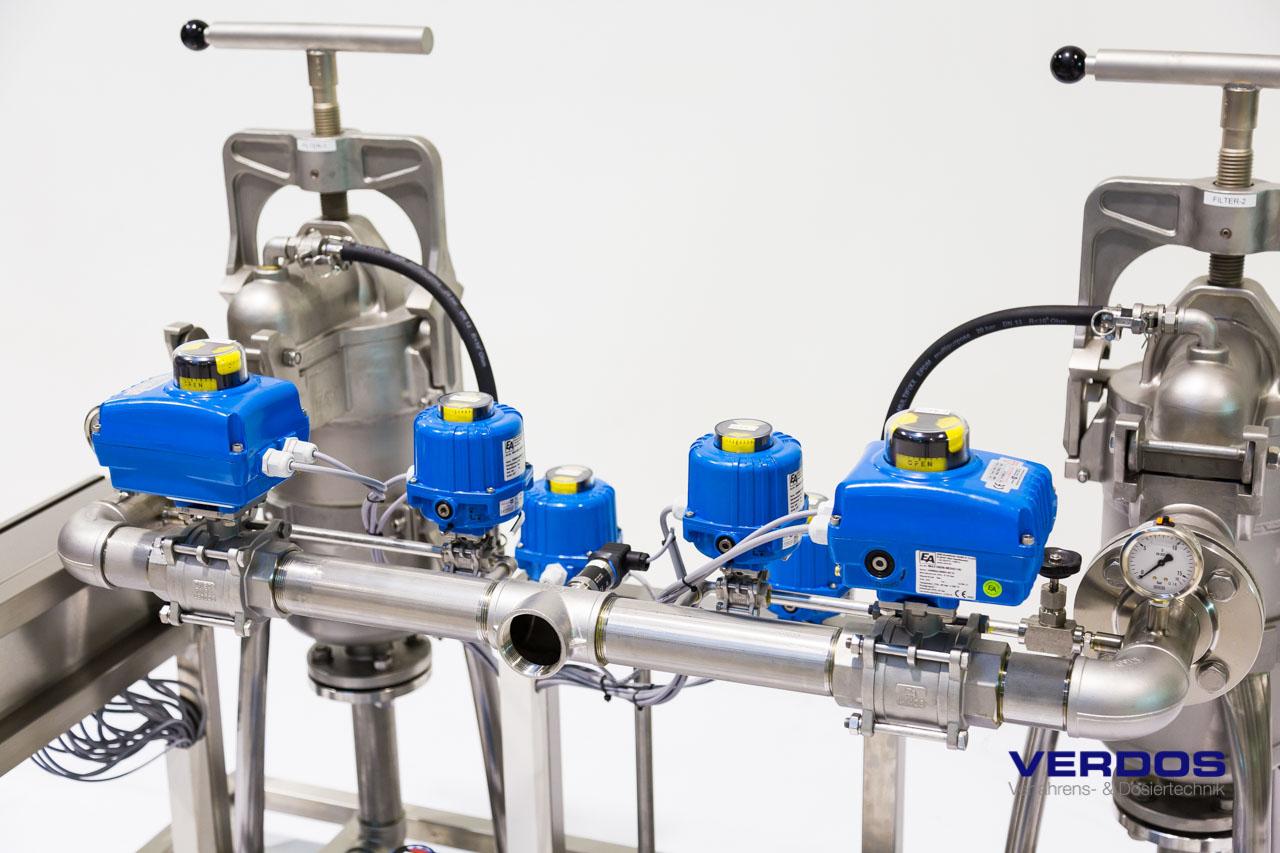

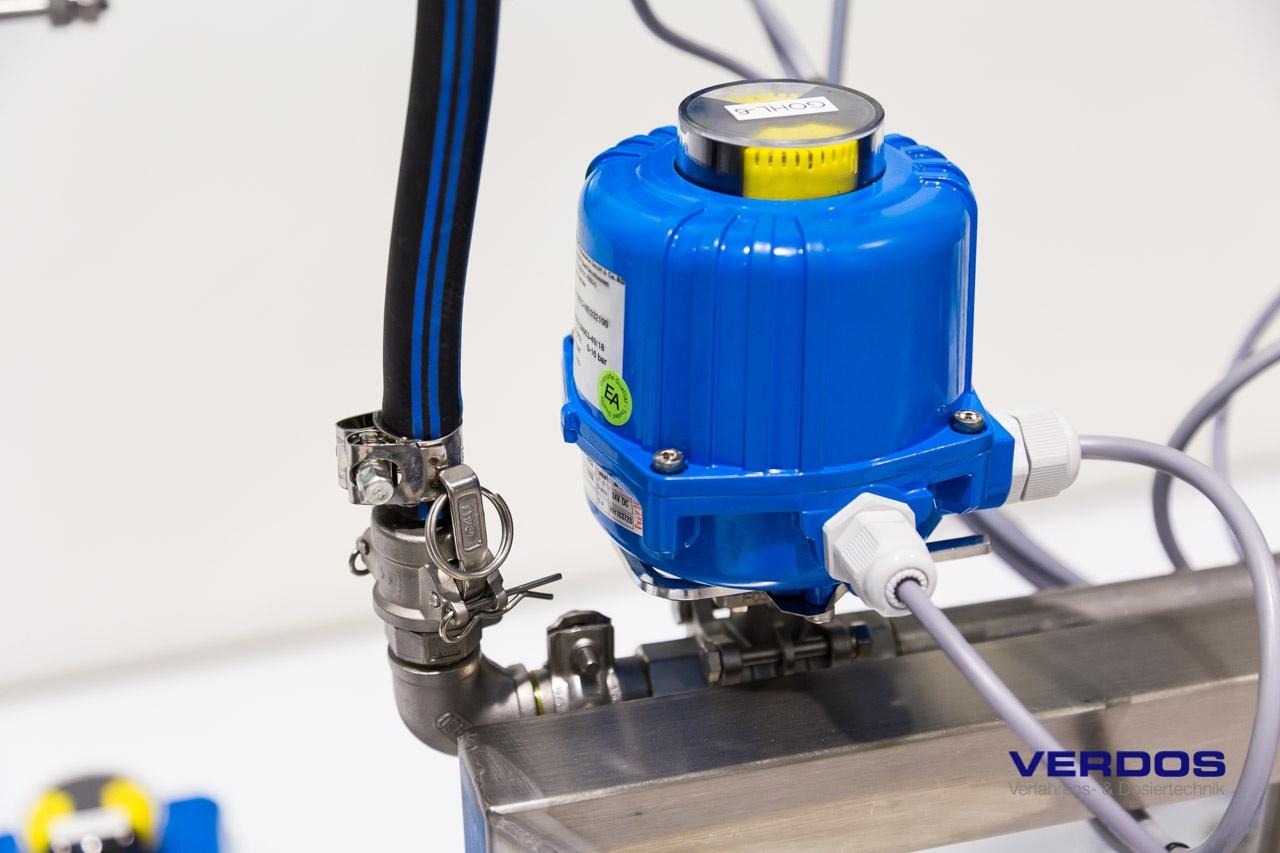

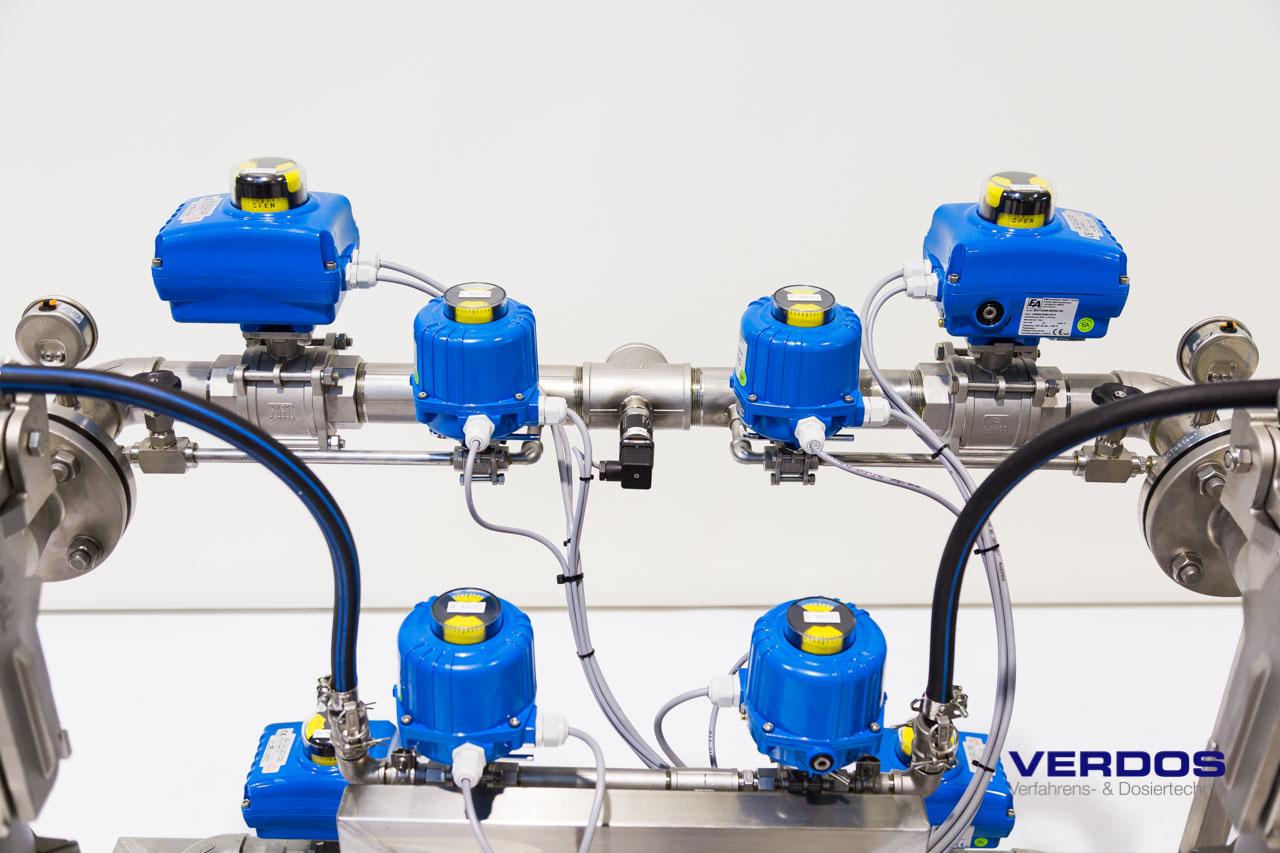

Electrically actuated ball valve

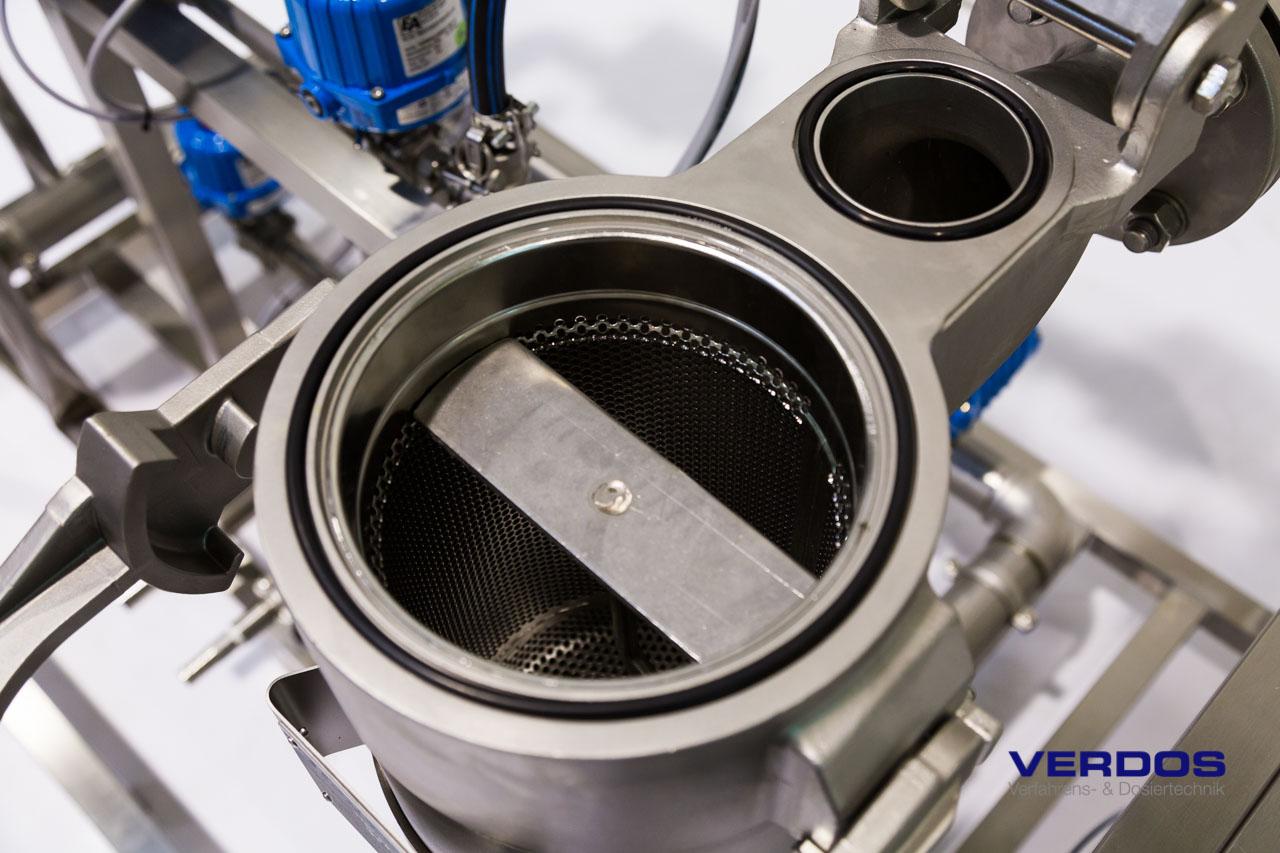

Stainless steel filter
  • Actuation types
  • Front view
  • Electrically actuated ball valve
  • Stainless steel filter
Read more...

With only a minimum of maintenance effort, it is possible to achieve an optimum separation of chemicals or solids in process water.

Data and facts:

  • Mounted on a stainless steel chassis
  • High-quality stainless steel filter housing
  • Max. operating pressure 16 bar
  • Stainless steel sieve inserts with supporting fabric
    • 50 – 1200µm, other mesh sizes on request
  • Minimum maintenance effort
  • Highest operating safety and reliability
Standard filter systems:
TypEKF-2KF-8KF-18KF-36KF-50KF-70
Water flow l/h 2000 8000 18000 36000 50000 70000
Flow rate l/h at 600 mPas 600 1800 6000 12000 17000 23000
Max. working pressure 16 bar

Options:

  • Compatible with various filter bags, e.g.
    • Polyamide fabric
    • Nylon/Felt
    • PP/Felt
  • Differential pressure gauge
  • Fully automatic version
    • The system automatically switches to a cleaned filter.
    • Automatic draining with indication, if cleaning/replacement of filter insert is required
  • Automatic backwashing unit
Gallery...

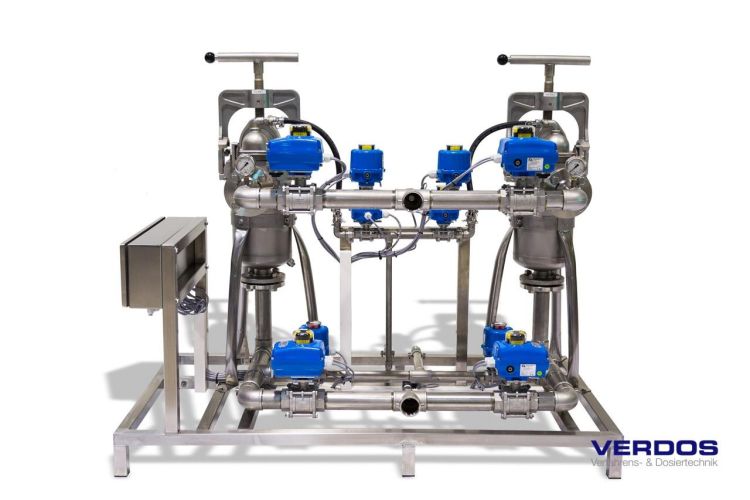

Vollautomatische Filteranlage / Fully automated filter unit
Vollautomatische Filteranlage / Fully automated filter unit
